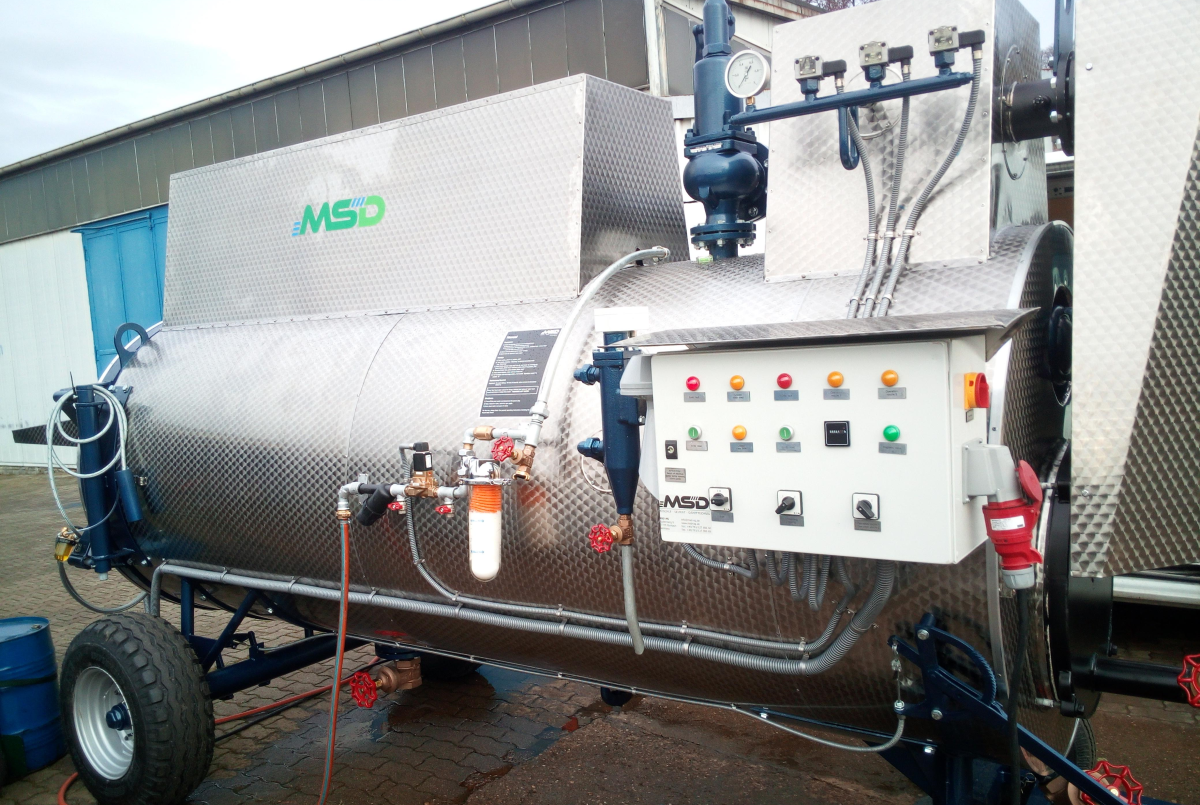

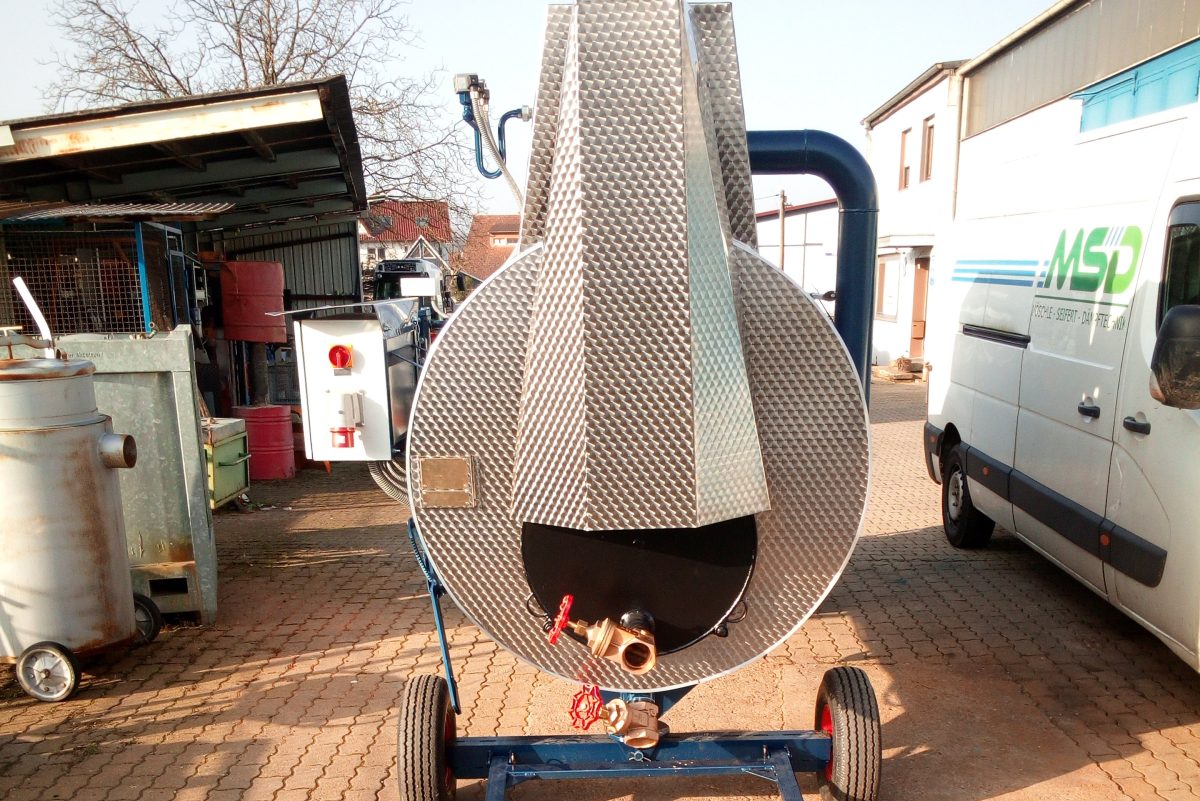

S 1350 - 1350 kg/h

The performance of this steam boiler leaves nothing to be desired. The huge flame space minimizes the stress to which the heating surface is exposed. This makes its lifecycle longer, what is one of the most important criteria for an investment to be worth it in the long term.

Technical specifications

Steam output 1,350 kg/h
Heating oil consumption116 litres/h
Thermal output KW1,030
Heat flow kcal/h885,000
Total length5.0 m
Total width1.8 m
Total height2.7 m
Empty weight3,580 kg
Steam connectionPK / 90
Surface unit capacity (~25 cm steaming depth at ~80°C)75-90 m²/h
Surface unit capacity of the hood (~25 cm steaming depth at ~80°C)100-130 m²/h
Throughput rates for substrates14.0-78.0 m³/h
Mash /must heating (liquids)~19,300 litres/h
